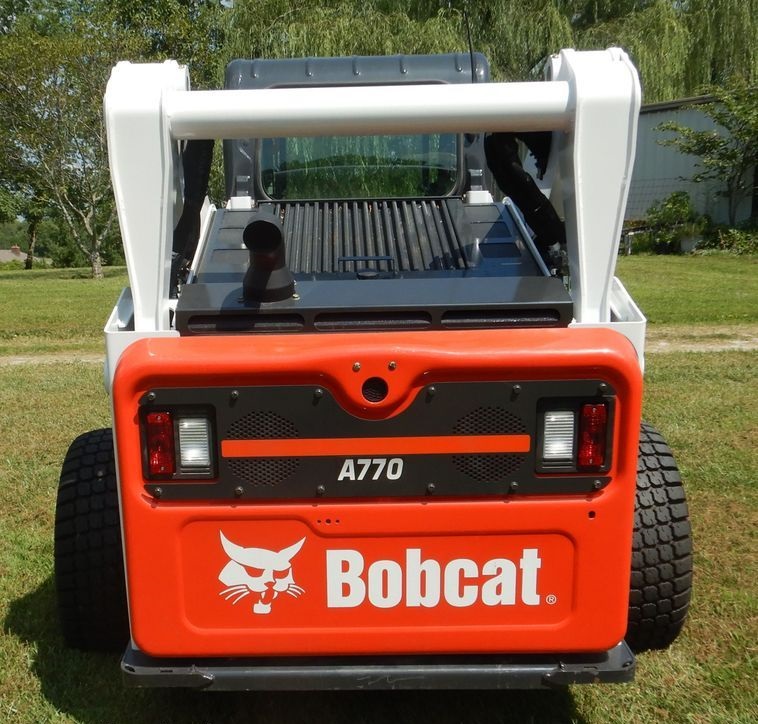

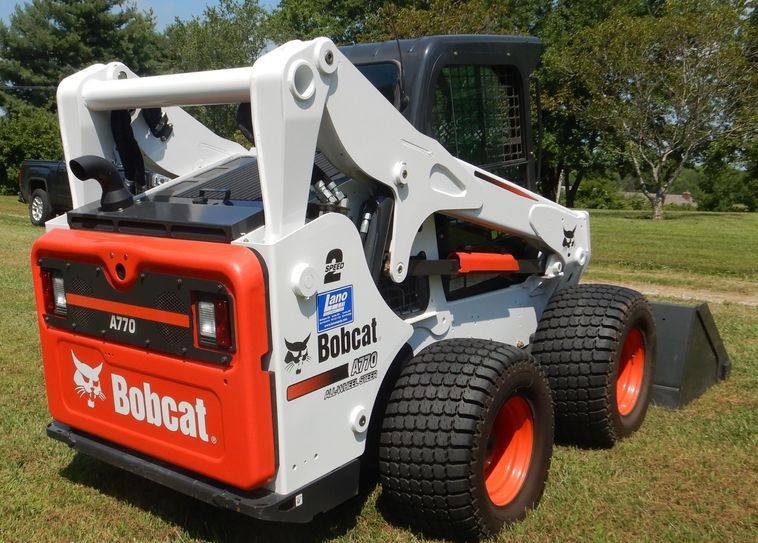

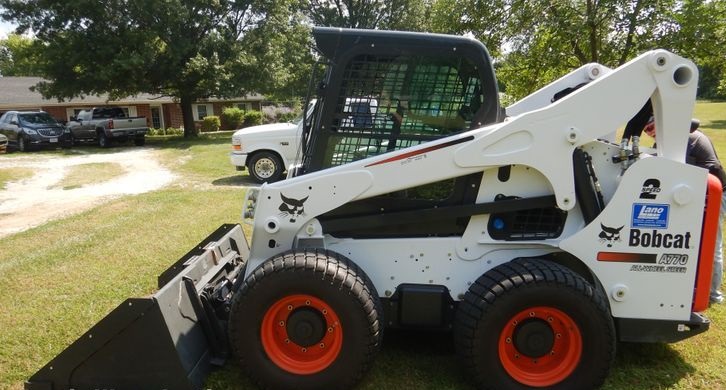

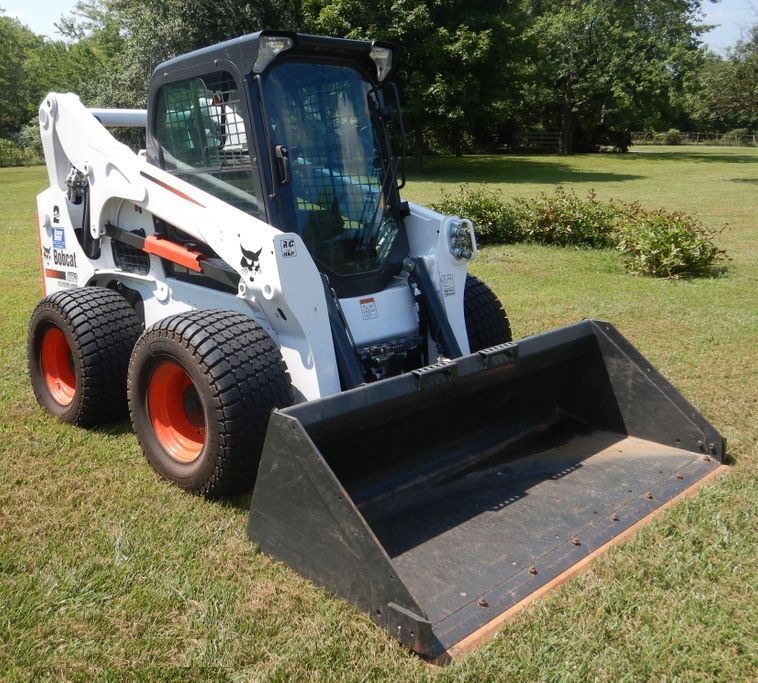

2016 Bobcat A770

Description

🚜 General / Powertrain
Year: 2016
Model: Bobcat A770
Hours: 178
Type: All-Wheel Steer Skid-Steer Loader
Engine: Bobcat D34 Turbo Diesel
Engine Power: 92 hp
Engine Emissions: Tier 4 Final compliant
Fuel System: Direct-injection diesel, liquid cooled
Fuel Tank Capacity: 23.9 gal
Drive: Switchable Skid-Steer / All-Wheel Steer (AWS)
Operating Weight: 9,623 lb
Rated Operating Capacity (ROC): 3,325 lb
Tipping Load: 6,650 lb
Travel Speed (Low): 7.1 mph
Travel Speed (High / 2-Speed): 12.3 mph

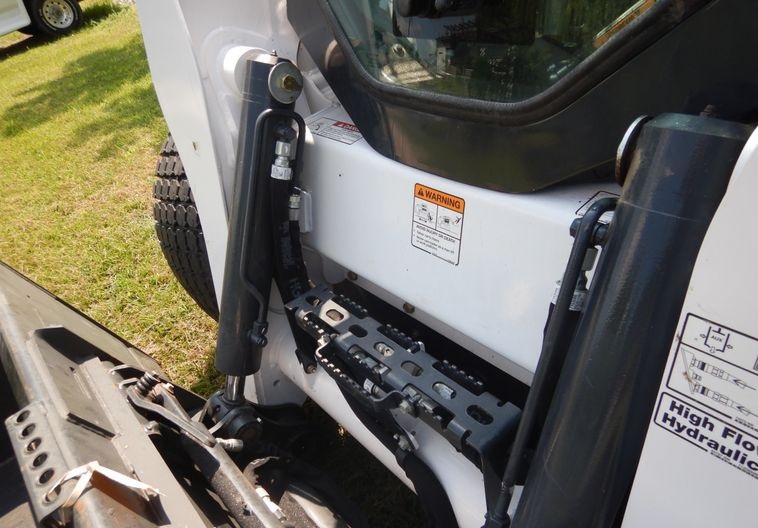

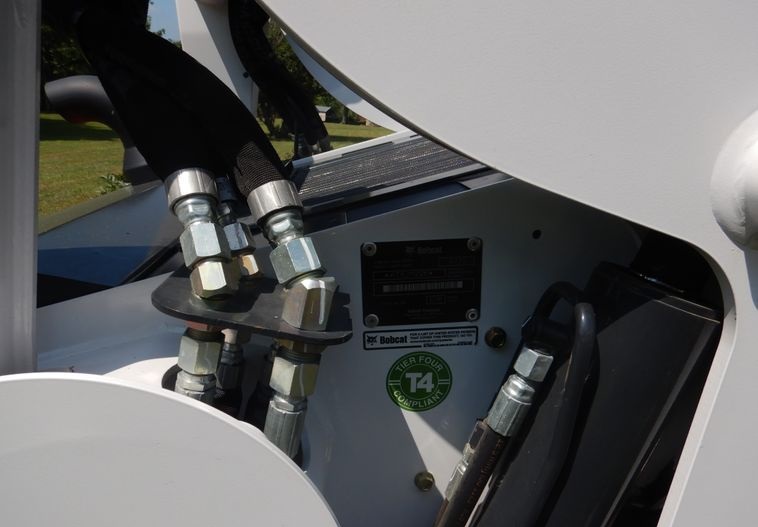

⚙️ Hydraulic System
Standard Auxiliary Flow: 23.0 gpm (87.1 L/min)
High-Flow Auxiliary: 36.6 gpm (138.5 L/min)
System Pressure: 3,500 psi (241 bar)
Hydraulic Horsepower (High Flow): ~75 hp
Attachment Interface: Bob-Tach™ quick attach

📏 Dimensions
Length with Bucket: 141.6 in
Length without Bucket: 114.3 in
Width over Tires: 74.7 in
Height to Cab: 81.3 in
Height to Bucket Hinge Pin: 132 in
Wheelbase: 48.3 in
Ground Clearance: 8.1 in
Dump Reach at Max Height: 31.5 in

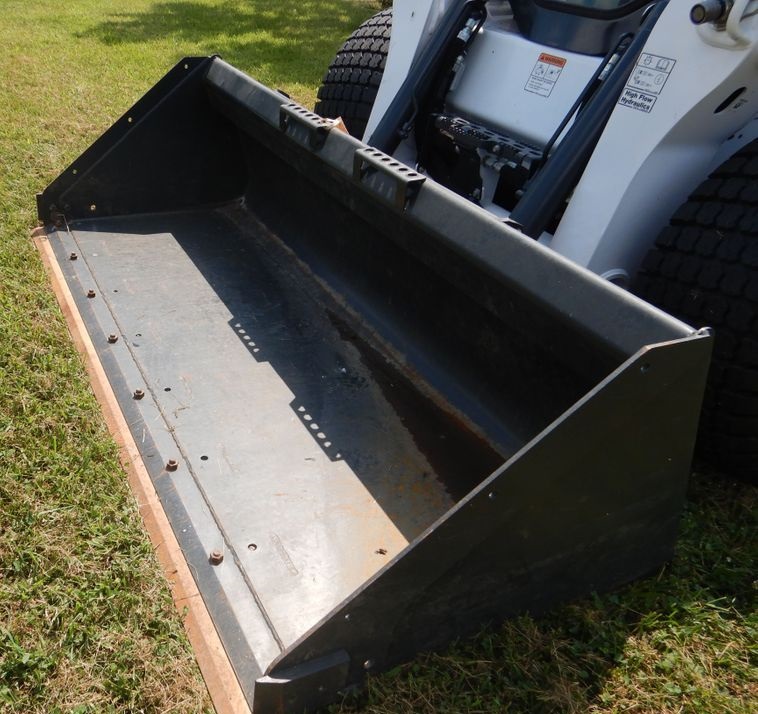

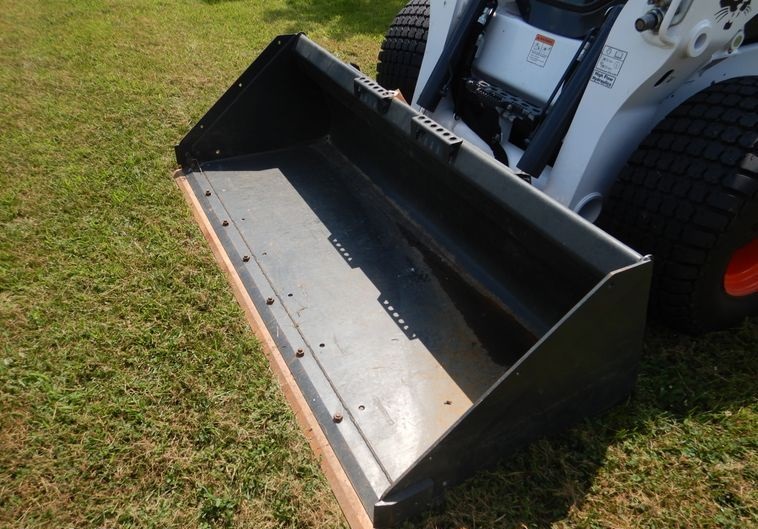

🏗️ Lift & Bucket Performance
Lift Path: Vertical Lift
Bucket Breakout Force: ~5,500 lb
Lift Arm Breakout Force: ~5,365 lb
Dump Angle at Max Height: 42°
Rollback Angle at Max Height: 98°

🛢️ Capacities
Fuel Capacity: 23.9 gal
Engine Oil Capacity: 13.3 qt
Hydraulic Reservoir: 2.5 gal

✅ EXCELLENT CONDITION!
